Horizontal Sand Mill Machine
Main motor:18.5KW Chamber volume:5L
Speed:0-1000rpm/min inverter controlled
Grinding sticks:tungsten steel's sticks that fixed on rotor &chamber.
Double cooling system:cooling water jacket &cooling inside rotor
Seals:Double lips mechanical seals.
Safety protecting:temperature out &pressure out protecting.
Grinding beads:diameter 0.6-0.8mm ZrO2 beads
Phone ：+86 189 5150 3022
WhatsApp ：+86 189 5150 3022
Email ：hkh@qyhj.com
Contact Us

PRODUCT PARAMETERS

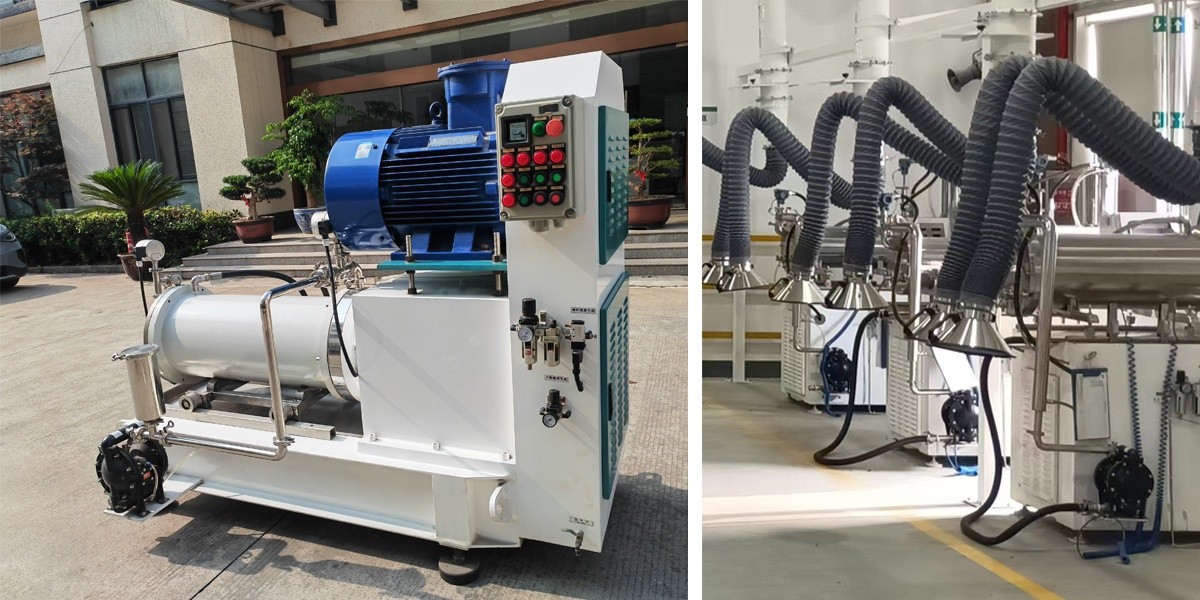

4-1

Main motor:18.5KW Chamber volume:5L

Speed:0-1000rpm/min inverter controlled

Grinding sticks:tungsten steel's sticks that fixed on rotor &chamber.

Double cooling system:cooling water jacket &cooling inside   rotor

Seals:Double  lips  mechanical  seals.

Safety     protecting:temperature out &pressure out protecting.

Grinding  beads:diameter  0.6-0.8mm  ZrO2  beads


Model

SW5

SW20

SW30      SW50

SW60

SW80

Motor Power(kw)

5.5

18.5

22       30

37

45-55

Chamber Volume(L)

5

20

30       50

60

80

Pump Flux(L/min)

2-12

2-12

2-12         3-18

3-24

3-24

Subdivision(μm)

2-20

2-20

2-20      2-20

2-20

2-20

Mill Beads





GLASS BEADS











ZrO₂BEADS
